FAYON Smart Table Flip-version

FAYON Smart Table Flip-version

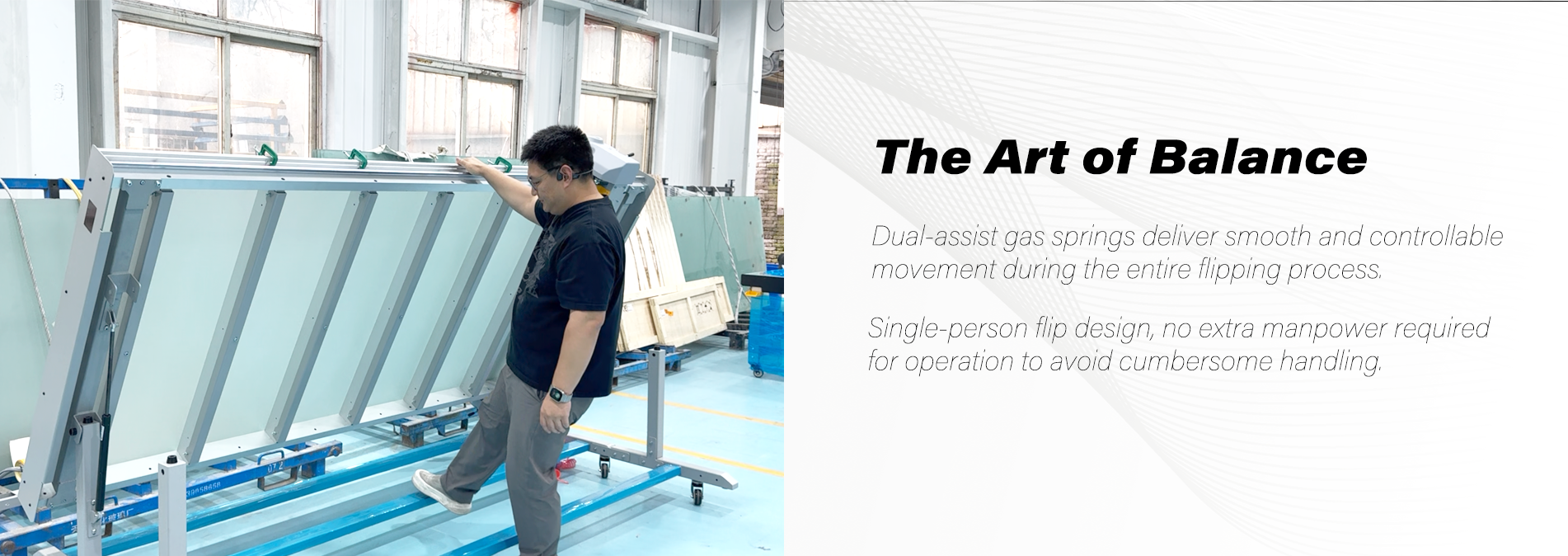

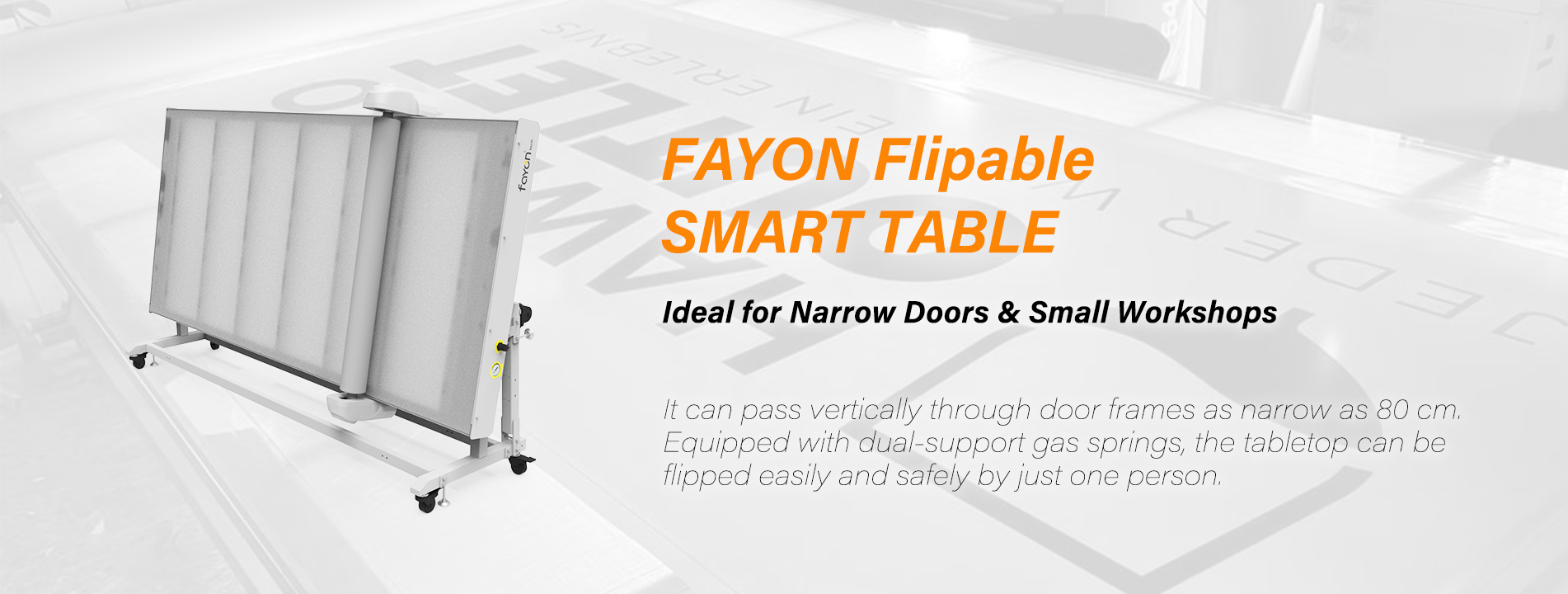

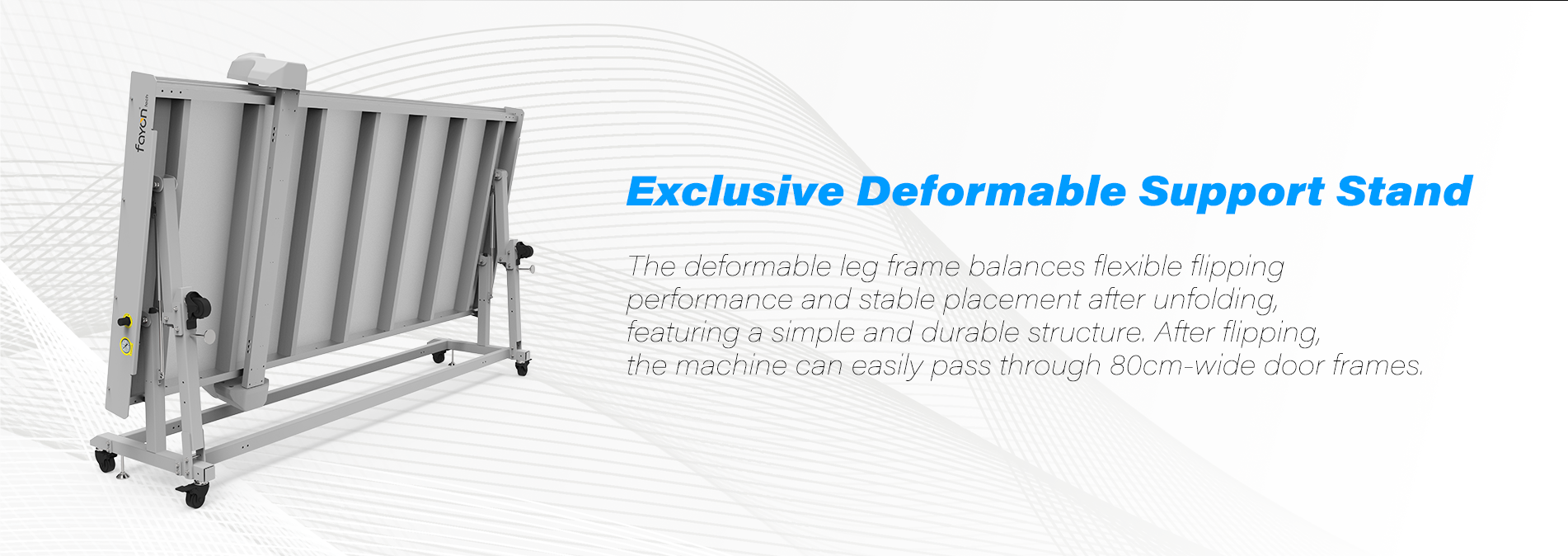

Built on the design and premium quality of SmartTable, we specially upgraded its stand to a flipable structure, allowing users to move the machine through narrow doorways with ease.





Henan Fayon Tech. Co.ltd.
Henan Fayon Tech. Co.ltd.
Henan Fayon Tech. Co.ltd.

Slim but strong Machine Body

Pure Alloy Aluminum Profile structure

Laboratory level flat surface

10mm thickness Tempered Glass

Anti-scraching and withstand impact

All corners and edges are rounded

Henan Fayon Tech. Co.ltd.

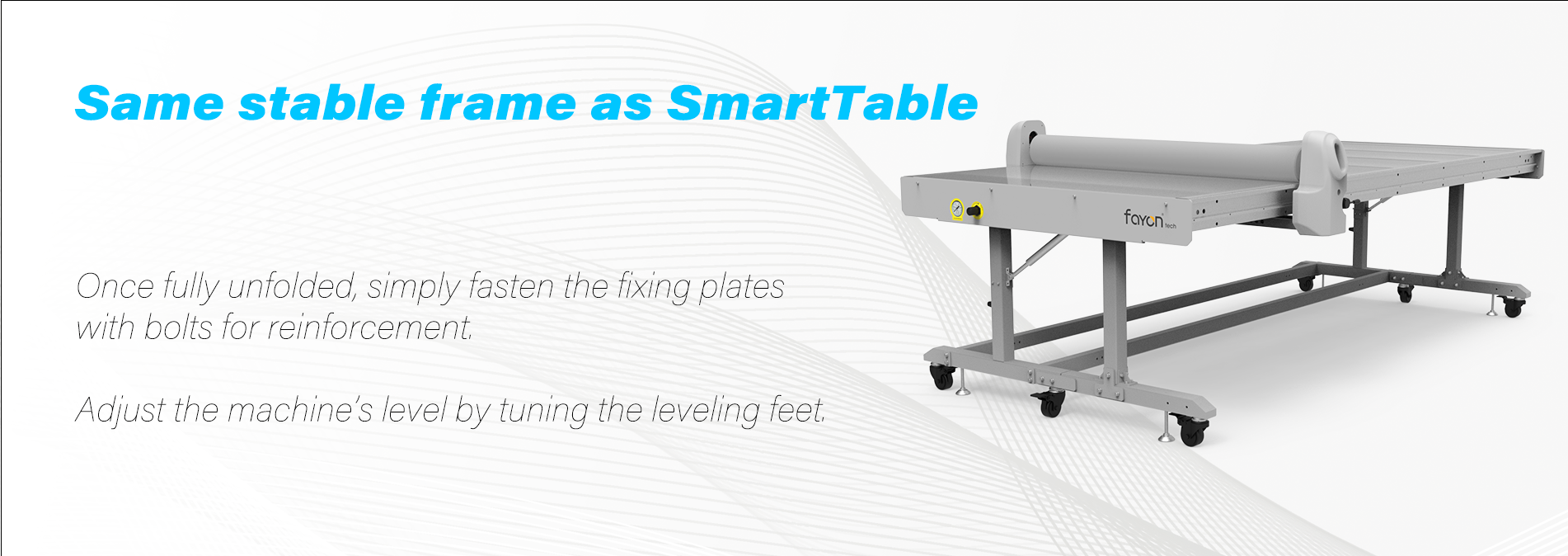

Free Gantry Design

Ensure there is nothing but the roll on the table, no longer need to pass the materials under the gantry, greatly simplify user operations.

Henan Fayon Tech. Co.ltd.

Exclusive design of mechanical tension device

Invention Patent protection

Tight and fix the core by twisting the black ring outter, which can keep the whole locking continuous stable.

Henan Fayon Tech. Co.ltd.

Exclusive structure on the tension Knob

We chose the rectangular spring to get the process of increasing friction more smoothly and continuously, result in a better control of materials tension.

Henan Fayon Tech. Co.ltd.
Henan Fayon Tech. Co.ltd.
Henan Fayon Tech. Co.ltd.
Henan Fayon Tech. Co.ltd.

Production

FAYON manufacturer from start to finish at our own factory in Henan, China-from the welding of the steel chassis to final assembly and testing. Keeping the whole production process in-house gives us full control over quality and greater flexibility with regard to design changes, customizationand production improvement.

Optional Configurations

  • Henan Fayon Tech. Co.ltd.

    Dusty cleaning Tools

    Easily clean the prints surface by simple rolling on it.
  • Henan Fayon Tech. Co.ltd.

    Madie EZ-Holder

    Help user loading the materials rolls easily, easy the rolls rewinding
  • Henan Fayon Tech. Co.ltd.

    PVC cutting mat

    Protect the top of table glass



Technical Data

Model FY-1325 FY-1530
Max laminating size 1300/2500mm 1500/3000mm
Max laminating thickness 50mm 50mm
Operation type Manual Manual
Roller upgrade Air cylinder Air cylinder
Power input 0.8~1.0kw/h 0.8~1.0kw/h
Pressure range 0~0.8Mpa 0~0.8Mpa
N.W 380kgs 500kgs
